PRESSURE BOOSTER (USP,80,52,53)
Self Priming Pumps are manufactured as per IS: 8472. These Self priming Domestic Pumps are light in weight with rugged construction design and balance parts which give noiseless operation for a longer duration.
Premium Quality With Genuine Price
HP Range | Up to 1 |
Stage | Up to 3 |
Phase | Single Phase |
Suction | 25 |
Delivery size (mm) | - |
Head Range (M) | 15-22 |
Head Min | - |
Discharge | Up to 54 |
Speed RPM | 2800 |

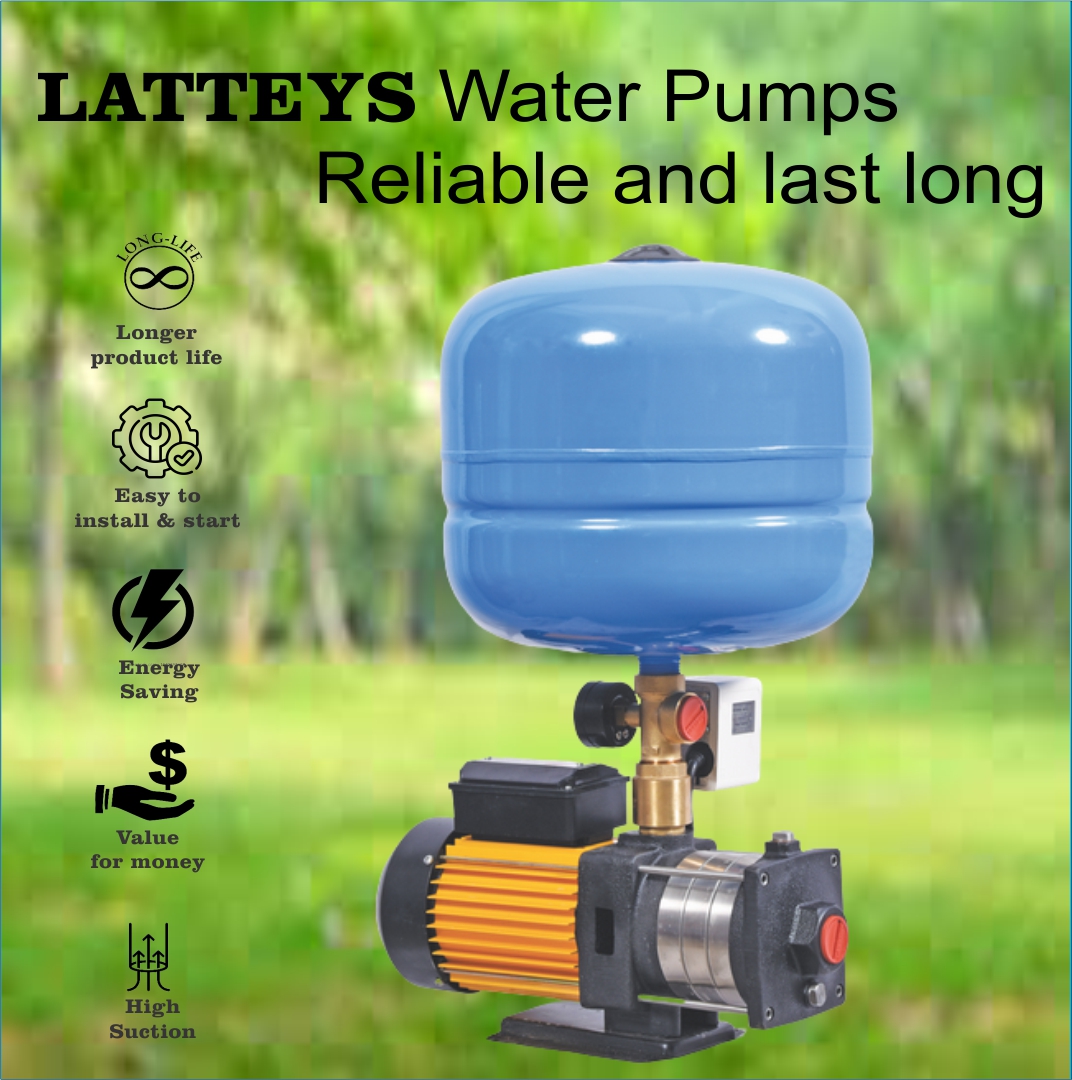

- Longer product life
- Value for money
- 100% cost recovery in just 30 months
- High Discharge & Suction
- Wide Voltage Range
- Easy to install, easy to start
- Efficient energy saving
Motor Body | Stainless Steel |
---|---|
Stator | Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings. |
Rotor | EC Grade Copper Rotor/Aluminum Die Cast Rotor Coated with polyurethane paint for corrosion resistance and dynamically balanced for vibration free smooth operation. |
Stamping | Electrical Steel High Grade For Better Performance. |
Windings | PVC/Polyester insulated or Enameled insulated EC Grade copper. |
Bearings | High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity. |
Thrust Bearings | Resin Carbon ,SS AISI 420 Pad with Base CI FG 260 , Special Self- aligning and water lubricated to with stand high axial thrust load. |
Bearing Bush | LTB-4 Grade, Nitrile-butadiene rubber, Heavy duty angular contact bearing with load bearing capacity. |
Bearing Diaphragm | Nitrile-butadiene rubber diaphragm Adequately sized to accommodate expansion of water inside the prevent loss cooling water. |
Impeller | High quality abrasion resistant Norly,GFN3/SS, dynamically balanced. |
Bowl | High Grade Norly ,GFN3/Cast Iron CI FG 260/200 Grade |
Wear Rings | High quality abrasion resistant P.U. / Rubber. |
Shaft | AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. |
Suction Casing & NRV | CI FG 260/200,Provided with perforated Stainless Steel Strainer and adequately size to allow the water to be sucked-in with minimum friction. |
Cable Sealing | Nitrile-butadiene rubber, Designed so that no Borewell water with sand can enter the motor. |
Oil Seal, Mechanical Seal | Nitrile-butadiene rubber, Resin Carbon, Ceramic for High Sealing Solution. |
Fasteners | Stainless Steel Grade. |
- Q.WHERE THIS PRODUCT IS APPLICABLE?
- A.AGRICULTURE, DOMESTIC, INDUSTRIAL, SOLAR
