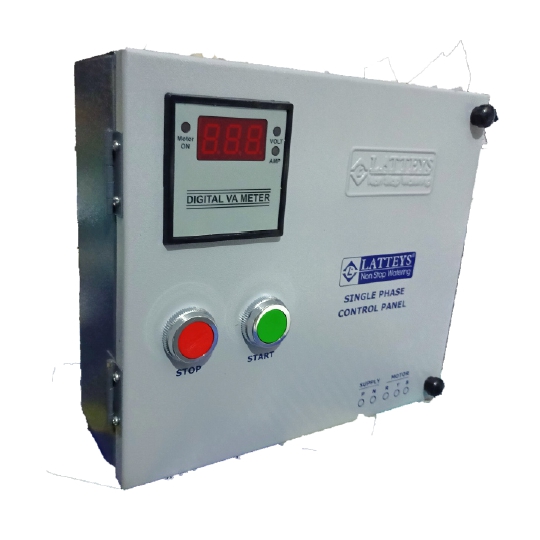

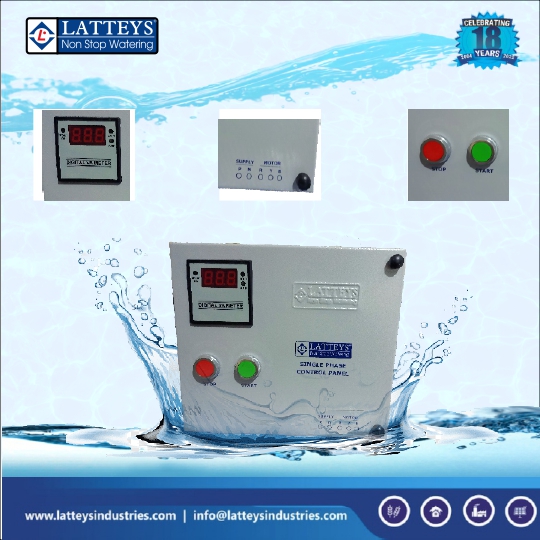

SINGLE PHASE MCB PANEL-3HP/100Mfd
PANEL Item Code: Panel-0035
UOM : PCS
Our Solar Pumps are designed with latest technology at affordable price so that everyone can enjoy the performance of our products within their reach without risk of unwanted damages and adverse/hostile conditions. Excellent performance have resulted in Latteys Solar Pumps making a diacritic/offbeat in the pump industry
Range of Solar DC Submersible Pump
- V4 - 1 HP to 10 HP
- V6 - 5 HP to 30 HP
Range of Solar AC Submersible Pump
- V4 - 1 HP to 7.5 HP
- V6 - 5 HP to 75 HP
Range of Solar DC Surface Pump
0.5 HP to 10 HP
Range of Solar AC Surface Pump
0.5 HP to 15 HP
Application
- Home Supply
- Car washing
- Domestic & Hospitality Industry
- RO water treatments
| HP | null |
| KW | 0 |
| STAGES | null |
| PHASE | null |
| WET TYPE | null |
| WEIGHT PER UNIT | 0 |
| WEIGHT UOM | null |
| SUCTION | null |
| DELIVERY SIZE MM | 0 |
| HEAD MAX | 0 |
| HEAD MIN | 0 |
| DISCHARGE | null |
| SPEED RPM | 0 |
| MRP | 0 |
- Longer product life
- Value for money
- 100% cost recovery in just 30 months
- High Discharge & Suction
- Wide Voltage Range
- Easy to install, easy to start
- Efficient energy saving
.png)
| Motor Body | Stainless Steel |
|---|---|
| Stator | Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings. |
| Rotor | EC Grade Copper Rotor/Aluminum Die Cast Rotor Coated with polyurethane paint for corrosion resistance and dynamically balanced for vibration free smooth operation. |
| Stamping | Electrical Steel High Grade For Better Performance. |
| Windings | PVC/Polyester insulated or Enameled insulated EC Grade copper. |
| Bearings | High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity. |
| Thrust Bearings | Resin Carbon ,SS AISI 420 Pad with Base CI FG 260 , Special Self- aligning and water lubricated to with stand high axial thrust load. |
| Bearing Bush | LTB-4 Grade, Nitrile-butadiene rubber, Heavy duty angular contact bearing with load bearing capacity. |
| Bearing Diaphragm | Nitrile-butadiene rubber diaphragm Adequately sized to accommodate expansion of water inside the prevent loss cooling water. |
| Impeller | High quality abrasion resistant Norly,GFN3/SS, dynamically balanced. |
| Bowl | High Grade Norly ,GFN3/Cast Iron CI FG 260/200 Grade |
| Wear Rings | High quality abrasion resistant P.U. / Rubber. |
| Shaft | AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. |
| Suction Casing & NRV | CI FG 260/200,Provided with perforated Stainless Steel Strainer and adequately size to allow the water to be sucked-in with minimum friction. |
| Cable Sealing | Nitrile-butadiene rubber, Designed so that no Borewell water with sand can enter the motor. |
| Oil Seal, Mechanical Seal | Nitrile-butadiene rubber, Resin Carbon, Ceramic for High Sealing Solution. |
| Fasteners | Stainless Steel Grade. |
