LV4/LW003/1.5HP/8St/-/40mm/SP
FinishedGoodsV4 Item Code: FGV4-0363
UOM : SETS
LV4/LW003/1.5HP/8St/-/40mm/SP
| HP | 1.5 |
| KW | 1.125 |
| STAGES | 8 |
| PHASE | SP |
| WET TYPE | Water Fill |
| WEIGHT PER UNIT | 21 |
| WEIGHT UOM | Kg |
| SUCTION | - |
| DELIVERY SIZE MM | 40 |
| HEAD MAX | 35.2 |
| HEAD MIN | 24 |
| DISCHARGE | 108 |
| SPEED RPM | 2800 |
| MRP | 15640 |

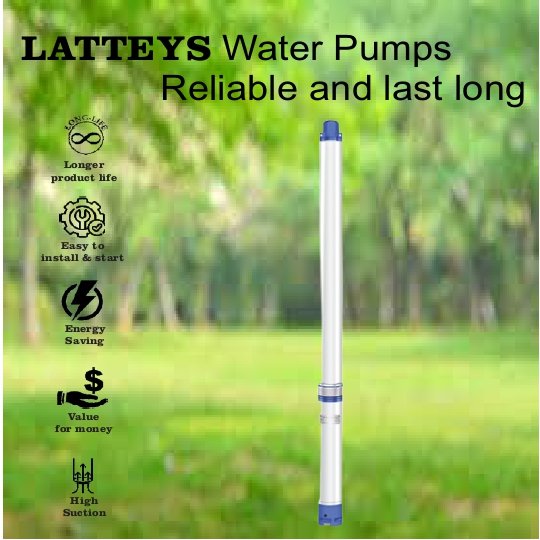

- Longer product life
- Value for money
- 100% cost recovery in just 30 months
- High Discharge & Suction
- Wide Voltage Range
- Easy to install, easy to start
- Efficient energy saving
.png)
| Motor Body | Stainless Steel |
|---|---|
| Stator | Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings. |
| Rotor | EC Grade Copper Rotor/Aluminum Die Cast Rotor Coated with polyurethane paint for corrosion resistance and dynamically balanced for vibration free smooth operation. |
| Stamping | Electrical Steel High Grade For Better Performance. |
| Windings | PVC/Polyester insulated or Enameled insulated EC Grade copper. |
| Bearings | High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity. |
| Thrust Bearings | Resin Carbon ,SS AISI 420 Pad with Base CI FG 260 , Special Self- aligning and water lubricated to with stand high axial thrust load. |
| Bearing Bush | LTB-4 Grade, Nitrile-butadiene rubber, Heavy duty angular contact bearing with load bearing capacity. |
| Bearing Diaphragm | Nitrile-butadiene rubber diaphragm Adequately sized to accommodate expansion of water inside the prevent loss cooling water. |
| Impeller | High quality abrasion resistant Norly,GFN3/SS, dynamically balanced. |
| Bowl | High Grade Norly ,GFN3/Cast Iron CI FG 260/200 Grade |
| Wear Rings | High quality abrasion resistant P.U. / Rubber. |
| Shaft | AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. |
| Suction Casing & NRV | CI FG 260/200,Provided with perforated Stainless Steel Strainer and adequately size to allow the water to be sucked-in with minimum friction. |
| Cable Sealing | Nitrile-butadiene rubber, Designed so that no Borewell water with sand can enter the motor. |
| Oil Seal, Mechanical Seal | Nitrile-butadiene rubber, Resin Carbon, Ceramic for High Sealing Solution. |
| Fasteners | Stainless Steel Grade. |
