FinishedGoodsRG Item Code: FGRG-0027

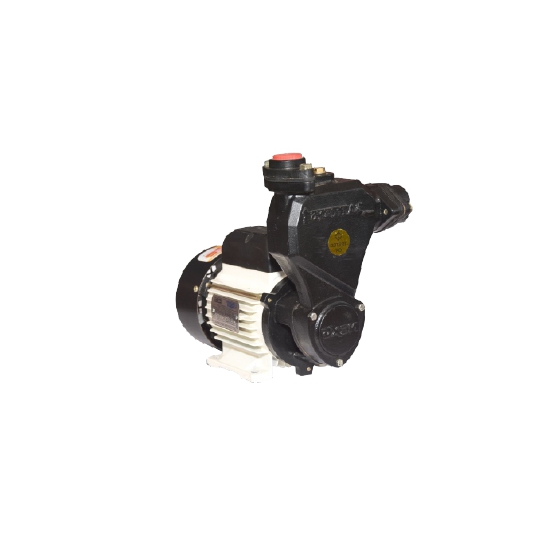

Self Priming Pumps are manufactured as per IS: 8472. These Self priming Domestic Pumps are light in weight with rugged construction design and balance parts which give noiseless operation for a longer duration.

HP/kW 1/0.75


Phase Single Phase
Voltage (V) 240
Speed (RPM) 2800
Suction (mm) 25
Delivery (mm) 25
Head (m) 20
Discharge (lpm) 20
Head Range (Meter) 5-30
  • Longer product life
  • Value for money
  • 100% cost recovery in just 30 months
  • High Discharge & Suction
  • Wide Voltage Range
  • Easy to install, easy to start
  • Efficient energy saving

Motor Body Made from Extruded Aluminum/Pressure Die-casted and cast iron for better heat dissipation.
Stator Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings.
Rotor Aluminum Die Cast Rotor
Stamping Electrical Steel High Grade For Better Performance.
Windings Enameled insulated EC Grade copper
Bearings High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity.
Impeller High Tensile Bronze
Suction Casing & Flange High Grade CI FG 260/200 Cast Iron.
Suction Casing & NRV Cast Iron Grade CI FG 260
Shaft AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
Mechanical Seal Nitrile-butadiene rubber, Resin Carbon, Ceramic for High Sealing Solution.
