LCM/LCM202H/2HP/1St/75x75mm/#SP
FinishedGoodsLCM Item Code: FGLCM-0061
UOM : PCS

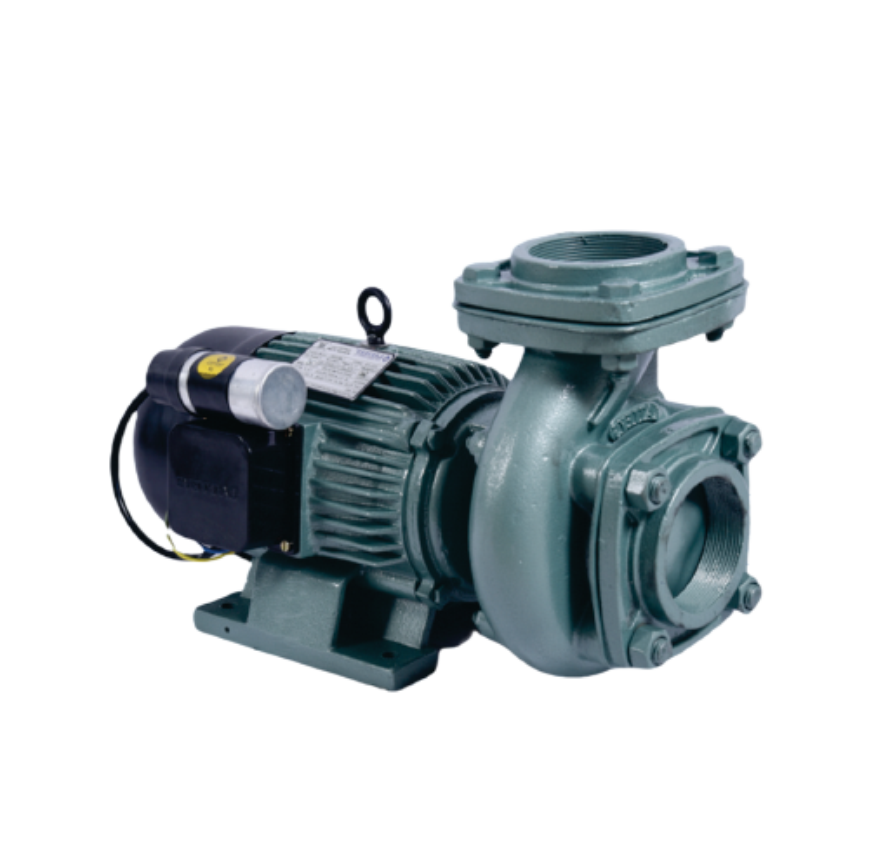

Latteys Centrifugal Monoblack Pumps are manufactured as per IS: 8079. These pumps and impellers are specially designed to get the best hydraulic efficiency. At the same time, the totally enclosed fan-cooled system is suitable for conditions where there is a wide voltage fluctuation
| HP | 2 |
| KW | 1.5 |
| STAGES | 1 |
| PHASE | #SP |
| WET TYPE | TEFC |
| WEIGHT PER UNIT | 0 |
| WEIGHT UOM | Kg |
| SUCTION | 75 |
| DELIVERY SIZE MM | 75 |
| HEAD MAX | 14 |
| HEAD MIN | 6 |
| DISCHARGE | 600 |
| SPEED RPM | 2830 |
| MRP | 19780 |
- Longer product life
- Value for money
- 100% cost recovery in just 30 months
- High Discharge & Suction
- Wide Voltage Range
- Easy to install, easy to start
- Efficient energy saving
.png)
| Motor Body | Cast Iron Grade CI FG 260 |
|---|---|
| Stator | Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings. |
| Rotor | Aluminum Die Cast Rotor dynamically balanced for Vibration free smooth operation. |
| Stamping | Electrical Steel High Grade For Better Performance. |
| Windings | Enameled insulated EC Grade copper |
| Bearings | High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity. |
| Impeller | Cast Iron Grade CI FG 260 High quality abrasion resistant Impeller dynamically balanced. |
| Volute | Cast Iron Grade CI FG 260 |
| Shaft | AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. |
| Pressure Tank | Imported tanks are meant to assure safe working and prolonged operational consistency. |
