LCM/LCM190/2HP/1St/65x50mm/SP
FinishedGoodsLCM Item Code: FGLCM-0075
UOM : SETS
Latteys Centrifugal Monoblack Pumps are manufactured as per IS: 8079. These pumps and impellers are specially designed to get the best hydraulic efficiency. At the same time, the totally enclosed fan-cooled system is suitable for conditions where there is a wide voltage fluctuation
| hp | 2 |
| kw | 1.5 |
| stages | 1 |
| phase | SP |
| wet_type | TEFC |
| weight_per_unit | 35 |
| weight_uom | Kg |
| suction | 65 |
| delivery_size_mm | 50 |
| head_max | 14.3 |
| head_min | 11.7 |
| discharge | 420 |
| speed_rpm | 2830 |
| mrp | 15985 |

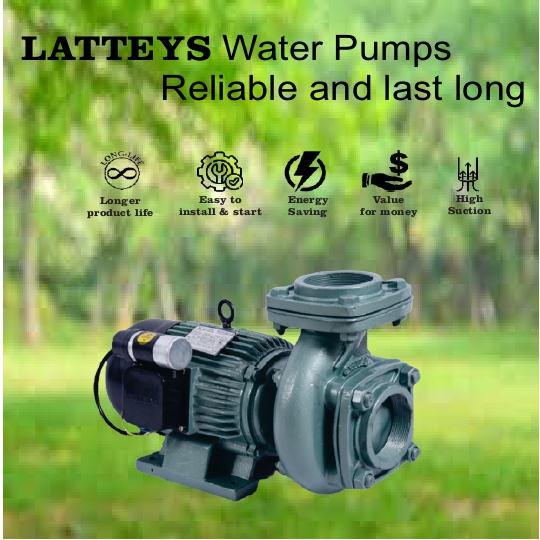

- Longer product life
- Value for money
- 100% cost recovery in just 30 months
- High Discharge & Suction
- Wide Voltage Range
- Easy to install, easy to start
- Efficient energy saving
.png)
| Motor Body | Cast Iron Grade CI FG 260 |
|---|---|
| Stator | Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings. |
| Rotor | Aluminum Die Cast Rotor dynamically balanced for Vibration free smooth operation. |
| Stamping | Electrical Steel High Grade For Better Performance. |
| Windings | Enameled insulated EC Grade copper |
| Bearings | High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity. |
| Impeller | Cast Iron Grade CI FG 260 High quality abrasion resistant Impeller dynamically balanced. |
| Volute | Cast Iron Grade CI FG 260 |
| Shaft | AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. |
| Pressure Tank | Imported tanks are meant to assure safe working and prolonged operational consistency. |
