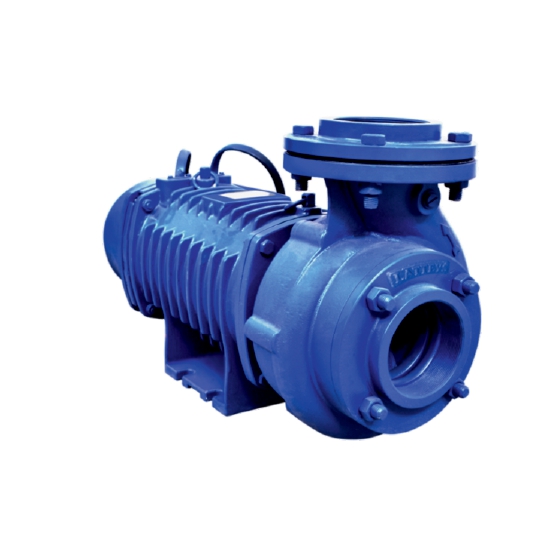

0.5HP 1ST DC SOLAR PUMPSETS
FinishedGoodsDC Item Code: FGDC-0072
UOM : Nos
Our Solar Pumps are designed with latest technology at affordable price so that everyone can enjoy the performance of our products within their reach without risk of unwanted damages and adverse/hostile conditions. Excellent performance have resulted in Latteys Solar Pumps making a diacritic/offbeat in the pump industry
| HP/kW | 0.5/0.375 |
| Stage | 1 |
| Phase | Three Phase |
| Voltage (V) | - |
| Speed (RPM) | - |
| Suction (mm) | - |
| Delivery (mm) | 40 |
| Head (m) | - |
| Discharge (lpm) | - |
| Head Range (Meter) | - |

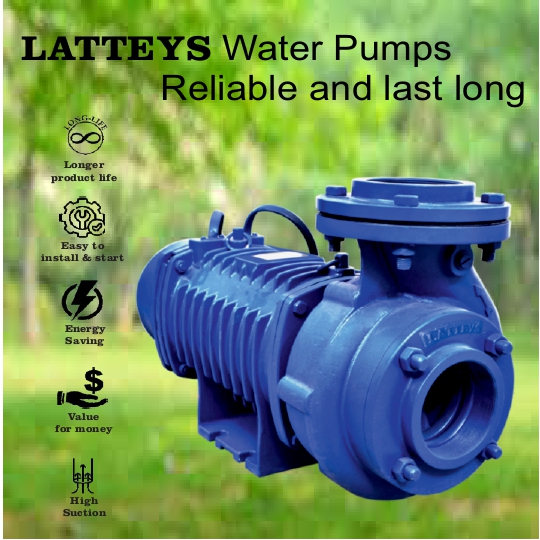

- Longer product life
- Value for money
- 100% cost recovery in just 30 months
- High Discharge & Suction
- Wide Voltage Range
- Easy to install, easy to start
- Efficient energy saving
.png)
| Motor Body | Stainless Steel |
|---|---|
| Stator | Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provide to protect motor windings. |
| Rotor | Stainless Steel Shaft AISI 420/431 Assemble With Magnet N-40. |
| Stamping | Electrical Steel High Grade For Better Performance. |
| Windings | PVC/Polyester insulated or Enameled insulated EC Grade copper. |
| Thrust Bearings | Resin Carbon ,SS AISI 420 Pad with Base CI FG 260 , Special Self- aligning and water lubricated to with stand high axial thrust load. |
| Bearing Bush | LTB-4 Grade, Nitrile-butadiene rubber, Heavy duty angular contact bearing with load bearing capacity. |
| Bearing Diaphragm | Nitrile-butadiene rubber diaphragm Adequately sized to accommodate expansion of water inside the prevent loss cooling water. |
| Impeller | Stainless Steel SS-304 Sheet Metal. |
| Bowl | Stainless Steel SS-304 Sheet Metal. |
| Wear Rings & Valve Sheet | High quality abrasion resistant Nitrile-butadiene rubber with Metal Ring Inside. |
| Pump-Shaft | AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances. |
| Suction Casing & NRV | Stainless Steel SS-304 Investment Casting. |
| Cable Sealing | Nitrile-butadiene rubber, Designed so that no Borewell water with sand can enter the motor. |
| Oil Seal, Mechanical Seal | Nitrile-butadiene rubber, Resin Carbon, Ceramic for High Sealing Solution. |
| Fasteners | Stainless Steel Grade. |
